Product Details:
|
| Excavator: | Hitachi EX1200 | Boom Length: | 15500 Mm |
|---|---|---|---|
| Stick Length: | 11500 Mm | Bucket: | 1.6 Cum Rock Bucket |
| Max Reach: | 25900 Mm | Max Cut Depth: | 21400 Mm |
| Max Cut Height: | 24500 Mm | Fold Height: | 4300 Mm |
| Extra Counter Weight: | 9 Ton | Material: | Q345B+Q690D |
| High Light: | excavator boom extension,long reach attachments,Customized Long Reach Excavator Booms |
||

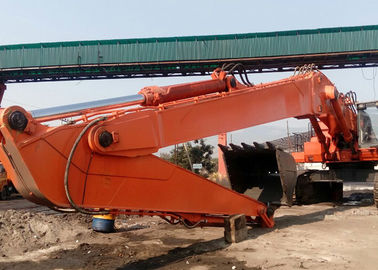

Customized Long Reach Excavator Booms Two Section Design High Performance
Description:
Long reach boom is very large workrange,and popular in lots of constructions,such as subway construction,dam construction,etc
Long reach boom also very popular and high efficient in dredging work,dredging river,dredging sea,dredging port,etc
Our service:
1. We specialized in customizing all kinds of long boom for all kinds of excavators.
We have detailed dimension of this Hitachi EX1200 excavator,so just give us the excavator model is ok.
2. Main sheet Material of this Hitachi EX1200 excavator long reach boom is Q345B + Q690D,the top and bottom cover plate of boom and stick is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.
5. For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare.
For bigger excavator(tonnage higher than 50ton),we match the original stick cylinder,original cylinder quality much more better.This Hitachi EX1200 long boom the stick cylinder match the original stick cylinder.
6. If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.
Specification:
| Model | LR120 | LR200-1 | LR200-2 | LR300 | LR350 | LR400 | LR450 |
| Total length (mm) | 13000 | 15500 | 18000 | 18000 | 20000 | 22000 | 24000 |
| Self weight (kg) | 3000 | 4150 | 4400 | 5200 | 6000 | 6500 | 7000 |
|
Max cut depth (mm) |
9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
| Max reach (mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23200 |
|
Max cut height (mm) |
11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
|
Folding height (mm) |
2900 | 2980 | 3040 | 3210 | 3320 | 3400 | 3430 |
|
Bucket capacity (cum) |
0.3 | 0.6 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
|
excavator tonnage (ton) |
10~15 | 16~22 | 20~24 | 25~33 | 30~36 | 35~42 | 40~50 |
Above parameter is our standard parameters,if you need special design,we can customize for you.
Specification of this Hitachi EX1200 Excavator 27m Long Reach Boom :
| Total length | 27000 mm |
| Boom length | 15500(5510+9990) mm |
| Stick length | 11500 mm |
| Bucket | 1.6 cum rock bucket |
| Max reach | 25900 mm |
| Max cut depth | 21400 mm |
| Max cut height | 24500 mm |
| Folding height | 4300mm |
| Material | Q345B+Q690D |
| Extra counter weight | 9 ton |

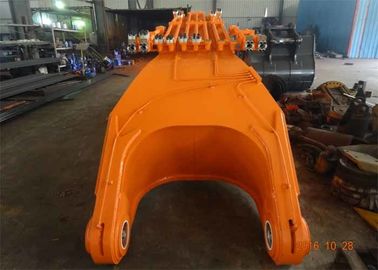

- Boom Length is 15500mm,too longer to transport in container.So our engineer separated it to two section design,convenient for container transporting and land trailer transporting.
- For big excavator,we do not standard design and supply all kinds of customize service for customers
Application:
1. We customize this Hitachi EX1200 Long reach excavator booms for an India customer.
2. Customer use the long Reach Excavator booms for Dredging business.
