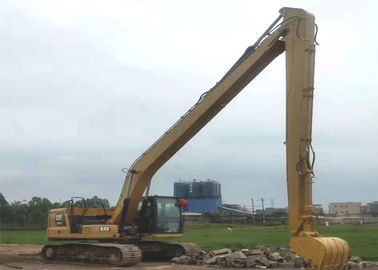

CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River

CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River
CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River

Large Image :  CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River

Product Details:
Place of Origin: China
Brand Name: HYKING
Certification: CE,ISO
Model Number: CAT320C-18m long boom
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: film packing
Delivery Time: 35 days
Payment Terms: L/C,T/T
Supply Ability: 10 sets/month

CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River

Description
Name: Long Reach Excavator Booms Application: CAT320C
Certification: ISO,CE Total Length: 18M
Material: Q345B+Q690D Warranty: 6 Months
High Light:

excavator boom stick

,

long reach attachments

CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River



Long Reach Excavator Booms Description:



Long reach boom excavator is very popular and high efficient in dredging work,dredging river,dredging sea,dredging port,etc



1. Our company specialized in customizing all kinds of super long fronts for all kinds of excavators.

We have detailed dimension of Hitachi CAT305 excavator,so just give us the excavator model is ok.

2. Main sheet Material of this Hitachi CAT305 excavator 60ft Super Long Reach Front is Q345B + Q690D,the top and bottom cover plate of boom and stick is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.

3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.



4. For all long boom we produced,will supply follow parts:

  • Bucket:1 pcs
  • Linkage:1 kits
  • Bucket cylinder:1 pcs
  • Hydraulic pipe:1 kits
  • Lubricant pipe:1 kits
  • Counter weight(if need):1 pcs
  • Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare

5. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas



Long Reach Excavator Booms Specification:



Excavator tonnage T 20~25T 30~36T 40~47T
Total length mm 15400 18000 18000 20000 22000 20000 22000 24000
Max workrange mm 15000 17300 17300 19200 21020 19200 21020 23020
Max cut depth mm 10300 12100 12100 14000 15410 14000 15410 16410
Max cut depth at vertical wall mm 9400 11200 11200 13100 15520 13100 14520 15520
Max cut height mm 12800 15300 15300 16600 17170 15600 16170 17170
Max unloading height mm 10200 12200 12200 13500 14830 13700 14920 15630
Min rotate radius mm 4720 5100 5100 6200 6200 6200 7740 7740
Boom length mm 8600 9900 9900 11000 12500 11000 12000 13000
Stick length mm 6800 8100 8100 9000 10500 9000 10000 11000
Stick max cut force(ISO) KN 82 64 115 94 78 167 138 109
Bucket max cut force(ISO) KN 151 99 151 151 151 151 151 151
Bucket capacity m3 0.5 0.4 0.9 0.7 0.5 1.0 0.8 0.6
Bucket rotate degree deg 170 170 170 170 170 170 170 170
Folding length mm 12600 14300 14300 15300 16960 15300 16960 17960
Folding height mm 3340 3480 3545 3570 3670 3670 3670 3670
Extra Counter weight T 0 1.5 0 3 3.5 2 3 3.5



Above parameter is our standard parameters,if you need special design,we can customize for you.



CONTACT US for more details now



RSBM BUCKETS
Item
Material
Parts
Configuration &Capability
Fit Models


Standard/HD Bucket


Q345B



Adapter, Teeth,

Side cutter

Standard plate thickness like the original factory, domestic high quality tooth plate.
For 5-30T excavator.
cat307 312 320 ,R55 R210 PC200 PC220 EX120 EX200 EC160


Heavy duty Bucket

Q345B
Q460B


Adapter,Teeth,Side cutter,protector

Thicker plate, domestic high quality tooth plate which can extend the using time
FOR 19-60T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc
NM400
Q4600
Q345B



Adapter,Teeth,Side cutter,protector

Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending


Rock Bucket


NM500
NM400 Q345B


Adapter,Teeth,Side cutter,protector, wearing block

Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently.



FOR 20-100T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250 ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 etc



Heavy duty Rock Bucket




HARDOX400

NM500
NM400
Q345B


Adapter,Teeth,Side cutter,protector, wearing block

Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.



Long Reach Excavator Booms Application:



1. The Customer ordered 3 kits Hitachi 60ft length Super long reach booms.

2. The 3 kits Super long fronts was export to Middle east.

3. One 40ft container can hold 3 kits 20ton excavator Super long booms,we use steel bracket to fix it.



CAT320C 18m Long Reach Excavator Booms For Dredging Work / Dredging River 0
