|Name:||Excavator Demolition Attachments||Brand:||Hyking|
|Certification:||CE,ISO||Main Body Material:||Hardox450|
|Jaw Material:||80mm Thick Hardox450||Weight:||2200 Kg|
PC300-7 Excavator Demolition Attachments,
Hardox450 Excavator Demolition Attachments,
PC300-7 Excavator hydraulic shears
PC300-7 Excavator Demolition Attachments Hardox450 Body Material ISO Proved
1. Demolishing buildings
2. Demolition which need lower noise.
Dongguan Haijing Machinery Co., Ltd. is located in Dongguan, Guangdong Province, a famous manufacturing city in China. Has a large number of high-precision processing equipment, such as plasma, CNC flame cutting machine, floor milling machine, large lathe / drilling machine, etc., is one of the domestic large-scale construction machinery parts manufacturers, the main products are: excavator claws, excavator and long arm, Demolition of the arm, shortening of the arm, grasping the wood, etc. The products are sold all over the country and exported to more than 30 countries. They have provided product supporting services for many large-scale projects such as subway construction, hydropower stations, nuclear power plants, municipal projects, river dredging, and tunnel projects
|Excavator tonnage||20~40 ton|
|Self Weight||2200 kg|
|Max Open||980 mm|
|Max cutting force||2250 KN|
|Oil flow needed for cutting||190~260L/min|
|Oil flow needed for rotating||20L/min|
|Main body material||Hardox450|
|Jaw material||80mm thick Hardox450|
|Blade||2pcs 4 side blade|
|Rotate motor||two stage planetary reducer hydraulic pump|

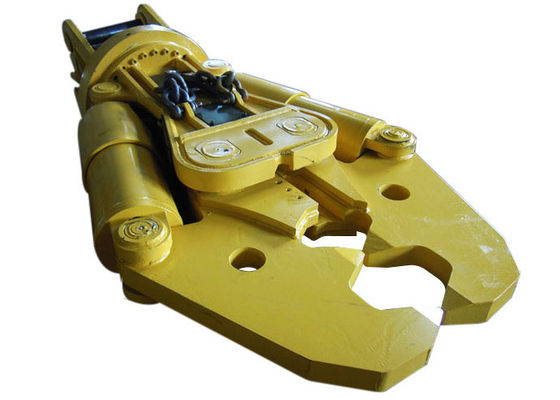

Hydraulic demolition shears also called demolition crusher,multi-processor,etc.It’s composed with main body, hydraulic cylinder, movable jaw . The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the two movable jaws open and close to achieve the effect of crushing concreted walls.Mainly function is for both primary and secondary demolition work.
It’s low noise, no vibration, meet the requirements of environmental protection, which are Suitable for city and high-tech zone demolition project.
Our Demoliton crusher shear have follow advantages:
1. Both the main-body and jaws are made from hardox450,structure is high performance
2. The 2pcs jaws is made from 80mm thick hardox450 steel,much more longer life than cast jaw.
3. We use boring machine adjust the precision after welding,to avoid the big tolerance leaded by welding
4. Blade is 2pcs 4-side blade,so have a much more longer life
5. The blade of this demolition shear,can cut 30mm-diameter steel rod,can cut 30mm-thick steel sheet.
6. Rotate motor is two stage planetary reducer hydraulic pump,much more higher rotate speed,better than worm gear pump.
7. Hydraulic oil cylinder is equipped with a protective cover to obstruct the splash of concrete and
8. The grease injection nipples have cover protected,won’t be damaged in rough demolition work.
