Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket Double Cylinders

China Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders supplier
Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders supplier Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders supplier Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders supplier Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders supplier

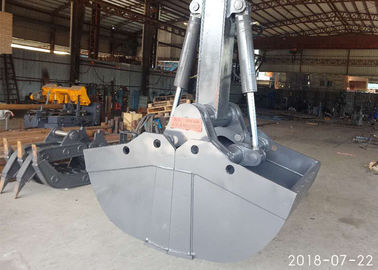

Large Image :  Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket Double Cylinders

Product Details:

Place of Origin: China
Brand Name: Hyking
Certification: ISO,CE
Model Number: HK-CSB200

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD3800~4200/set
Packaging Details: film,plywood box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Excavator: 18~24ton Bucket Width: 1200 Mm
Max Open: 1830 Mm Bucket Capacity: 1.2 Cum
Weight: 1100kg Material: Q345B+NM400
Hose Fittings: BSP 1/2" Cylinder: 2 Pcs

Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket Double Cylinders



Description:



Clamshell bucket grab is a multi-fuction attachments for excavators,it's very popular in loading,unloading,dredging and excavating works.



We can design and customize all kinds of Clamshell bucket grab according to your requirements.

- rotary for non-rotary is available.

- bucket width,bucket capacity can be customized

- one cylinder,double cylinders is available.





Excavator Clamshell bucket grab is easy for installation:

- if no rotary function,it’s do not need extra pipe line,it can be connect to the pipe line of bucket cylinders.

- if have rotary function,need two kits extra auxiliary pipe line,we can prepare for you.





Specification:

Model CSB60 CSB120 CSB200 CSB300 CSB400
Bucket capacity (cum) 0.35 0.6 1.2 1.5 2.0
Max open (mm) 900 1420 1800 2200 2400
Bucket width (mm) 800 1000 1200 1350 1600
Self weight (kg) 320 650 1100 1500 2200
Closed height (mm) 1400 1700 2000 2300 2600
Excavator tonnage (ton) 5~8 10~15 16~25 26~35 36~45

Above parameter is our non-rotary standard design,rotary function is selectable.

If have special design or requirements,we also can prepare for you.



Our advantages:

1. Side plate and tooth plate of the excavator clamshell bucket is NM400 steel,very wearable.



2. Structure is reinforced.

Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders



3. Have one layer extra gusset plate,very durable.

Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders



4. We can supply hydraulic steel pipes and hoses for assembling.For steel pipes,also supply welding base and pipe clamp for fixing the steel pipe.

- Also supply stop valves for the pipes,so it's easy for replacing other attachments.

- If need foot switch valve,we also can supply

Professional Hydraulic Grapple Attachment , Hydraulic Grab Bucket  Double Cylinders





5.Welding is protective-gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas



Application:

-Customer is a coal minning company

-Customer use this clamshell grab bucket for coal loading & Unloading.
