Product Details:
|
| Excavator: | Kobelco SK380 | Bucket Width: | 1710 Mm |
|---|---|---|---|
| Max Open: | 2600 Mm | Bucket Capacity: | 3.0 Cum |
| Weight: | 2100kg | Material: | Q345B+NM400 |
| Hose Fittings: | ORFS 13/16" | Cylinder: | 2 Pcs |
| Rotating: | Worm Rotating | Color: | Black |
| High Light: | excavator thumb grab,hydraulic grab bucket,Kobelco SK380 Excavator Grab Attachment |
||
Kobelco SK380 Excavator Grab Attachment 3.0 Cum Bucket Capacity Worm Rotating
Description:
Clamshell bucket grab is very popular and ideal in loading,unloading,dredging and excavating works.
Especially for barge docks loading&unloading,clamshell bucket can be very big volume,and high efficient.
We can design and customize all kinds of Clamshell bucket grab according to Customer requirements.
- rotary for non-rotary is available.
- bucket width,bucket capacity can be customized
- one cylinder,double cylinders is available.
We also can customize all kinds of Material Handling arm together with the Clamshell bucket for you.
Excavator Clamshell bucket grab is easy for installation:
-if no rotary function,it’s do not need extra pipe line,it can be connect to the pipe line of bucket cylinders.
-if have rotary function,need two kits extra auxiliary pipe line,we can prepare for you.
Specification of the Kobelco SK380 Rotating Clamshell bucket grab:
| Excavator model | Kobelco SK380 |
| Bucket width | 1710 mm |
| Bucket open | 2600 mm |
| Bucket Volume | 3.0 cum |
| Self weight | 2100 kg |
| Rotating | 360 degree Worm rotating |
| Close height | 2700 mm |
| Cylinder No. | 2pcs |
| Hose fittings | ORFS 13/16" |
| Material | Q345B+NM400 |
Customer use this bucket for coal loading&unloading.Coal Idensity is lower.
So the bucket is light design and higher bucket volume.
Specification:
| Model | CSB60 | CSB120 | CSB200 | CSB300 | CSB400 |
| Bucket capacity (cum) | 0.35 | 0.6 | 1.2 | 1.5 | 2.0 |
| Max open (mm) | 900 | 1420 | 1800 | 2200 | 2400 |
| Bucket width (mm) | 800 | 1000 | 1200 | 1350 | 1600 |
| Self weight (kg) | 320 | 650 | 1100 | 1500 | 2200 |
| Closed height (mm) | 1400 | 1700 | 2000 | 2300 | 2600 |
| Excavator tonnage (ton) | 5~8 | 10~15 | 16~25 | 26~35 | 36~45 |
Above parameter is our non-rotary standard design,rotary function is selectable.
If have special design or requirements,we also can prepare for you.
Our advantages:
1. Side plate and tooth plate of the excavator clamshell bucket is NM400 steel,very wearable.
2. Rotary or Non-rotary is selectable
3. Bucket size,height,weight,bucket open,shape can design according to your projects' requirements.
4. We can design and customize material Handling arm together with the Clamshell bucket grab for you.

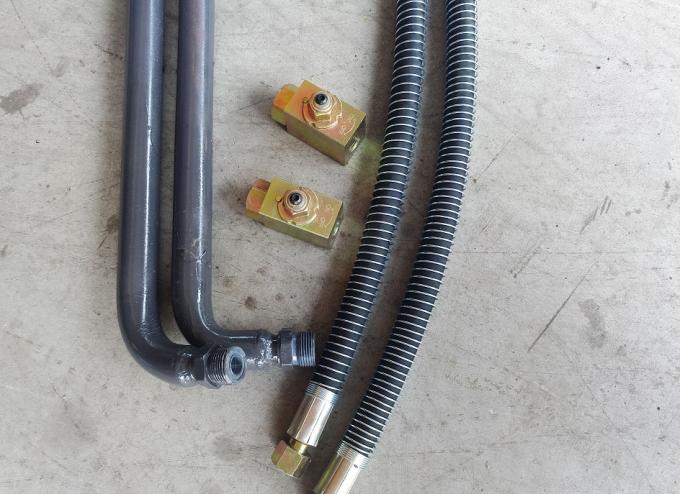

5. We can supply hydraulic steel pipes and hoses for assembling.For steel pipes,also supply welding base and pipe clamp for fixing the steel pipe.
- Also supply stop valves for the pipes,so it's easy for replacing other attachments.
- If need foot switch valve,we also can supply
6.Welding is protective-gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas
Application:

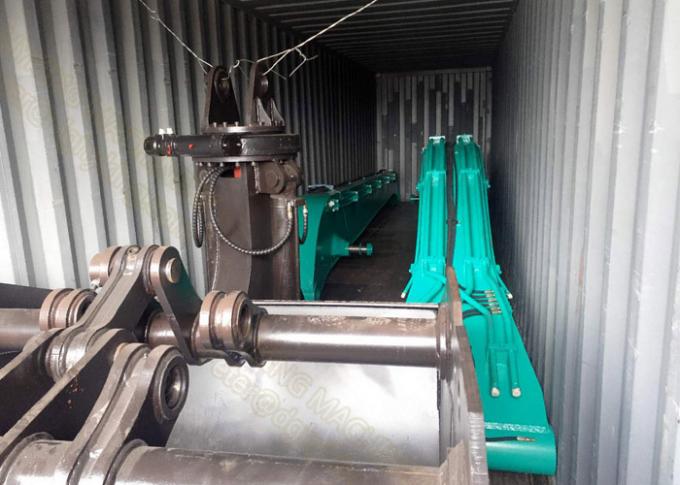

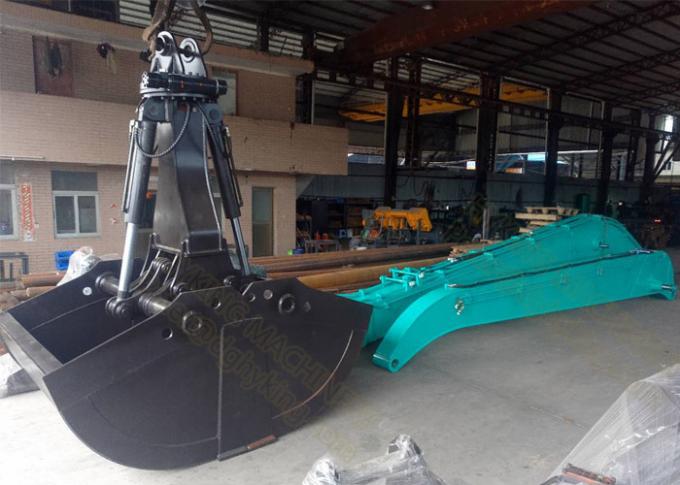

1.This Kobelco SK380 3 cum rotating clamshell bucket grab was export to India,together with a 16m length Sk380 Material Handling arm.
2.Customer use the Material handling arm together with clamshell bucket for Coal loading&unloading.
