|Excavator:||40 Ton Excavator||Max Open:||2400 Mm|
|Weight:||1850 Kg||Close Height:||2120 Mm|
|Flow For Grabbing:||90~180L/min||Flow For Rotating:||16~25L/min|
scrap handling grabs,
scrap metal grab,
Plastic Covered Orange Peel Grab

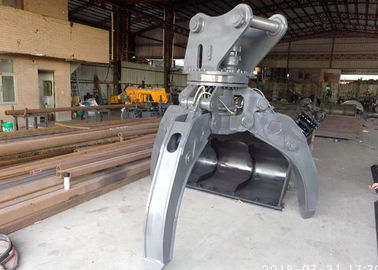

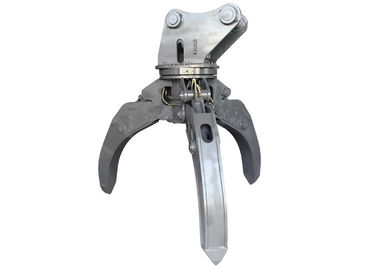

Plastic Covered Orange Peel Grab , Scrap Handling Grabs For Grabbing Anti Wave Block
This grab we designed it for a India customer,Customer have a projects for building a anti wave dam,so need lots of anti wave block been set on the dam.This grab is convenient fir their projects.
This Hydraulic Rotate Orange Peel Grab is a special grab we designned for a India customer, for grabbing anti-wave block.
Anti wave block is special shape,standard excavator grab can not grab it and place it in a right position.
This grab only 3 fingers design,so can match the shape of Anti-wave block,easy to grab it.
Hydraulic rotate grab is a popular excavator attachments,it have lots of functions,grabbing,loading,unloading,etc.It also can handling lots of materials,such as log,timber,metel scrap,stone,etc.
1. This grab,Cylinder is set in the internal of the fingers,preventing them from being damaged.
2. Oil hose are covered by plastic cover for protection .
3. The finger tips is bucket tooth,very wearable,and also easy for replacements,very covenient
4. 360 degree rotating design,convenient for operating.
5. Two extra kit of hydraulic pipe and valve has to be added to the excavator for rotary hydraulic grab.If no rotate function,only need one extra kit hydraulic grab.
6.Welding if protective gas welding,protective gas is 20% CO2 and 80% Aargon mixed.
7.We will also prepare the parts for assembling
Specification of this extension arm:
|Max open||2400 mm|
|Close height||2120 mm|
|Flow for grabbing||90~180L/min|
|Flow for rotating||16~25L/min|
|Max open / mm||920||1400||1830||2170|
|Finger No. / pcs||4||4||4 or 5||4 or 5|
|Closed volume / cum||0.22||0.31||0.57||0.89|
|Weight / kg||410||570||1100||1800|
|Excavator tonnage / Ton||6~10||12~16||18~25||26~35|
We use a steel bracket to fix the grab,so good for LCL shipping,won't damage the grab in transporting.
