Product Details:
|
| Excavator: | Volvo EC210 | Arm Min Length: | 5320 Mm |
|---|---|---|---|
| Arm Max Length: | 8170 Mm | Travel Length: | 2850 Mm |
| Bucket Volume: | 0.4 Cum | Max Cut Depth: | 9590 Mm |
| Max Work Range: | 12810 Mm | Material: | Q345B+Q690D |
| High Light: | excavator extension arm,excavator dipper arm,Slide Telescopic Volvo Excavator Attachments |
||
Slide Telescopic Volvo Excavator Attachments 12810mm For Volvo EC210 Excavator
1.We specialized in customizing all kinds of long boom for all kinds of excavators.
2. Main sheet Material of this Volvo EC210 Slide Telescopic arm is Q345B + Q690D,the top and bottom cover plate is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.
5.For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
6.If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.And the attachments pipe have stop valve in both end,it's easy for replace attachments.
Description:
Excavator Slide Arm is assembled on original boom to replace original arm, mainly for projects that need very deep cutting & Excavating requirements.Such as Subway building,dam construction,etc
Slide Arm is Retractable,when retract back,can be as a original standard arm.When extend out,much longer than standard arm,can fulfill lots of very deep excavating requirements.
For 20ton excavator,max cutting & excavating depth can be up to 9 meter.Covenient for lots of special projects.
Specification of this Volvo EC210 Slide Telescopic Arm :
| Min Length | 5320 mm |
| Max Length | 8170 mm |
| Travel length | 2850 mm |
| Bucket Volume | 0.4 Cum |
| Max reach | 12810 mm |
| Max cut depth | 9590 mm |
| Weight | 2080 kg |
| Material | Q345B+Q690D |
| Extra counter weight | no need |
Specification of Our series Slide Telescopic Arm:
| Model | HK-SLB120 | HK-SLB200 | HK-SLB300 |
| Min Length (mm) | 3840 | 5320 | 6060 |
| Max Length (mm) | 5890 | 8170 | 9060 |
| Travel Length (mm) | 2050 | 2850 | 3000 |
| Bucket Volume (cum) | 0.25 | 0.4 | 0.7 |
| Max reach (mm) | 9800 | 12810 | 15314 |
| Max cut depth (mm) | 7550 | 9590 | 13270 |
| Weight (kg) | 1420 | 2080 | 2980 |
| Hose Fittings | BSP 3/4" | BSP 1" | BSP 1-1/4" |
| Extra Counter weight (ton) | No need | No need | No need |
Specification of our standard long reach excavator boom arm:
| Model |
Total Length |
Self weight |
Max reach |
Max cut depth (mm) |
Max cut |
Folding height(mm) |
Bucket Vol. |
Excavator |
| LR120 | 13000 | 2800 | 12500 | 9000 | 11300 | 2900 | 0.3 | 10~15 |
| LR200-1 | 15500 | 4150 | 15400 | 11340 | 12510 | 2980 | 0.6 | 16~22 |
| LR200-2 | 18000 | 4400 | 17600 | 12200 | 13500 | 3040 | 0.4 | 20~24 |
| LR300 | 18000 | 5200 | 17600 | 12200 | 13720 | 3210 | 0.4 | 25~33 |
| LR350 | 20000 | 6000 | 19600 | 14500 | 14920 | 3320 | 0.5 | 30~36 |
| LR400 | 22000 | 6500 | 21600 | 16100 | 16100 | 3400 | 0.6 | 35~42 |
| LR450 | 24000 | 7000 | 23200 | 18000 | 17300 | 3430 | 0.6 | 40~50 |
Above parameter is our standard parameters,if you need special design,we can customize for you.
Application:
1. Customer is a construction company mainly for building house.Have to excavate lots of deep holes for the contrete base pile.
2. So customer puchase this kind of slide arm from us for their projects,high efficient and covenient for their projects.

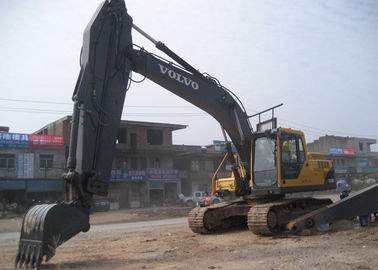

Working Picture:
