Product Details:
|
Excavator Model: | CAT365 | Tooth Plate Thickness: | 70mm Hardox450 |
---|---|---|---|
Bucke Capacity: | 3.7 CBM | Side Plate Thickness: | 50mm Hardox450 |
Gusset Plate Thickness: | 16mm Hardox450 | Bucket Width: | 1840 Mm |
High Light: | excavator grapple bucket,excavator screening bucket |
Tilting Heavy Duty Bucket , Mini Digger Buckets Wearable 20 Mm Hardox450 Side Reinforced
Standard Bucket:Apply to light operation task, such as digging and loading hard soil or stones nixed with the soft soil.
Heavy Duty Bucket: Suitable for digging hard soil, soil mixed with soft stone, loading gravel, broken stone and so on
Rock Bucket: Suitable for digging earth with hard rock, sub-hard stone and weathered stone, it also can do heavy work, such as digging and loading solid rock, blasted ore
Skeleton Bucket: Apply to clean the watercourse. It can be used for underwater work.
Quick Change Bucket:Apply to the construction site which should be worked flexible.
Specification:
Rock bucket is different from standard bucket,it usually made from wearable steel,not standard steel.Rock bucket's plate also thicker than standard bucket. Standard bucket usually be used for excavating soil,sand and other soft things. Rock bucket usually be used in minning field,need higher performance.
Excavator model | CAT365 |
Bucket Capacity | 3.7 CBM |
Tooth plate thickness | 70 mm Hardox450 |
Side plate thickness | 50 mm Hardox450 |
Gusset plate thickness | 16 mm Hardox450 |
Side reinforced plate | 20 mm Hardox450 |
Weight | 3700 kg |
Bucket width | 1840 mm |
Bucket Open | 1600 mm |
Bucket Depth | 1350 mm |
Description:
1. We professionally design and manufacture all kinds of excavator Rock buckets.The bucket capacity is from 0.4 cum to 10 cum.
2. Our bucket usually use the Q345B+NM400, Hardox400/450/500 materials, use reinforcing plate in the bottom, add side protective plate, wearing strip, wearing block, original or domestic adapter and tooth to reach high abrasion and bending ability, applying to different working conditions.
3. All our rock bucket have 2 layer gusset plate at bottom,much more durable.
4. All our rock bucket,have internal reinforced plate
5. According to our customer's drawing, we also can OEM or supply semi-finished product. Or use our drawing do ODM for customers,stick customers' logo.
6. All of our items are provided 6 month warranty for free maintenance
7. delivery time:5-7days for sample order and 20-30days for whole container.
Application:
1. Bucket capacity we can supply is from 0.2cum to 10cum
2. Having a wide range of all kinds of bucket
3. OEM or ODM service is available.
4. Also can customize much more reinforced bucket for customers.

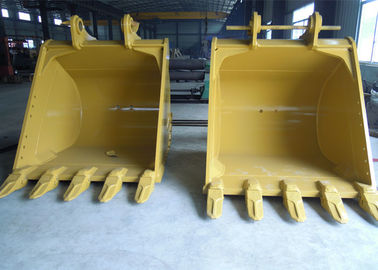

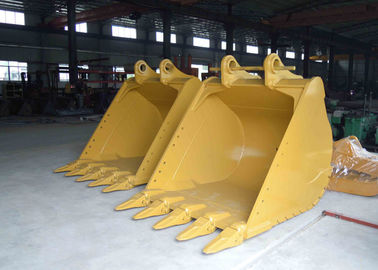

5.This two buckets be exported to Netherland
