Home ProductsExcavator Compaction Wheel

20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material

China Dongguan Hyking Machinery Co., Ltd. certification
China Dongguan Hyking Machinery Co., Ltd. certification
Great communication and help finding the right fitment

—— Ben from USA

Fast ship, very pleased and was correct part machine back up and running....

—— Yvone from New Zealand

Great deal, good communications and fast service!! AAA+++!!!

—— Mike from Canada

I'm Online Chat Now

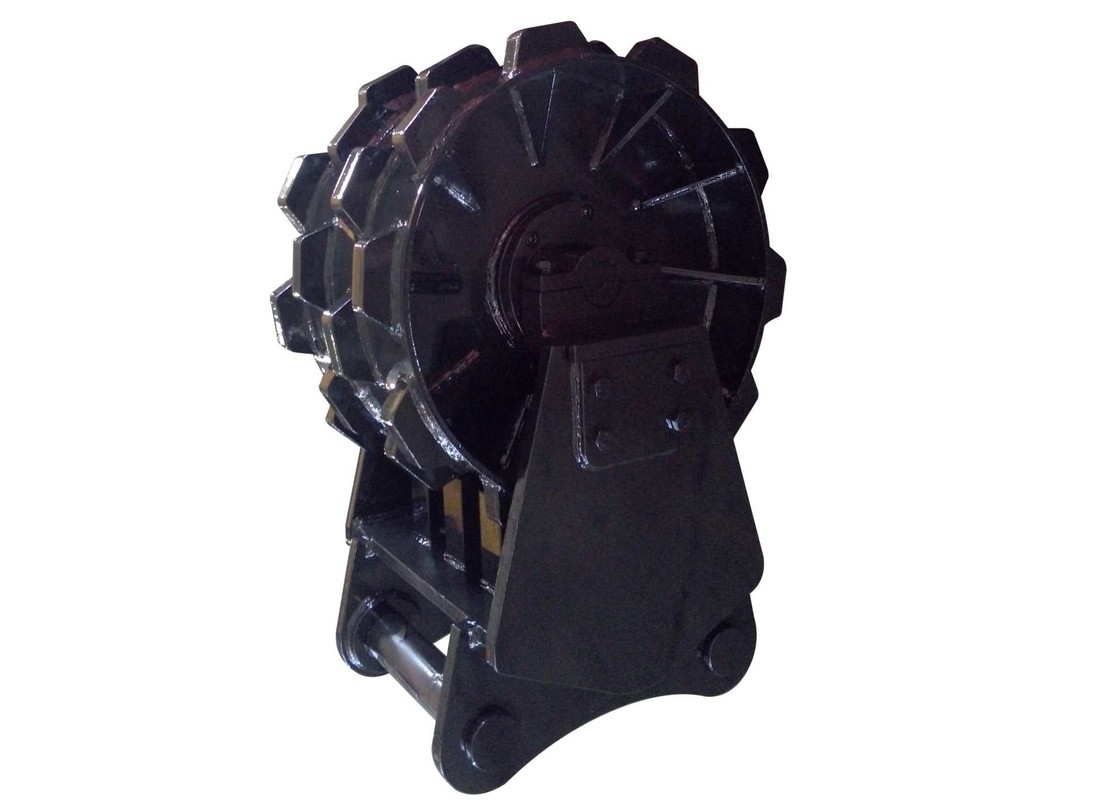

20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material

20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material
20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material

Large Image :  20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material

Product Details:
Place of Origin: China
Brand Name: HYKING
Certification: CE,ISO
Model Number: HK-CPW200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1700~2500/set
Packaging Details: film,plywoodbox
Delivery Time: 20 days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Excavator: 20 Ton Excavator Total Width: 600 Mm
Total Height: 1180 Mm Block Thickness: 50 Mm
Block Height: 70 Mm Material: Q345B
Weight: 1005kg Color: As Required
High Light:

Rotating compaction wheel excavator attachment

,

Q345B compaction wheel excavator attachment

,

20 Ton backhoe compaction wheel

20T Excavator Excavator Compaction Wheel Special Design High Precision Bearing Rotating







Application:

1. These compaction wheels was customized for both 20T excavator,and was export to Australia

2. Customer is a farm machiner dealer for excavators in Australia,he also have several excavator for rent business.



Description:

Excavator compaction wheels is a popular attachments in developed country. In the construction of ditches,can use compaction wheel to compact the soft soil to hard flat soil after excavating. In farm,also can compaction the soil after trenching.



Advantages:

1. Both the main-body and jaws are made from hardox450,structure is high performance

2. The 2pcs jaws is made from 80mm thick hardox450 steel,much more longer life than cast jaw.

3. We use boring machine adjust the precision after welding,to avoid the big tolerance leaded by welding

stress.

4. Blade is 2pcs 4-side blade,so have a much more longer life

5. The blade of this demolition shear,can cut 30mm-diameter steel rod,can cut 30mm-thick steel sheet.

6. Rotate motor is two stage planetary reducer hydraulic pump,much more higher rotate speed,better than worm gear pump.

7. Hydraulic oil cylinder is equipped with a protective cover to obstruct the splash of concrete and

steel debris.

8. The grease injection nipples have cover protected,won’t be damaged in rough demolition work.

20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material 020 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material 120 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material 2



Specification of this 14&20T Excavator compaction wheel:

Excavator 20 ton
Total width 600 mm
Drum width 532 mm
Drum diameter 800 mm
Total height 1180 mm
Block thickness 50 mm
Block height 70 mm
Material Q345B

We customized this compaction wheels for customer.

This Compaction wheel is a very special design can fit for both 20Ton and 14Ton pick up dimensions.

20 Ton Compaction Wheel Excavator Attachment Rotating Q345B Material 3



Specification of our series compaction wheels:

Model HK-CPW50 HK-CPW120 HK-CPW200 HK-CPW300
Total width / mm 430 500 568 600
Drum width / mm 350 420 495 532
Drum diameter / mm 480 560 780 1080
Self weight / kg 380 450 790 1080
Total height / mm 900 1020 1150 1300
Compact block thickness / mm 40 40 50 50

Compact block

height / mm

50 50 70 70

Above parameter is our standard design,if you need special design,we also can customize for you.
