Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts

Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts
Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts

Large Image :  Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts

Product Details:
Place of Origin: China
Brand Name: HYKING
Certification: CE,ISO
Model Number: HK-LR120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD8300~9700/sets
Packaging Details: film
Delivery Time: 25 days after getting deposit
Payment Terms: L/C,T/T
Supply Ability: 30 sets/month

Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts

Description
Excavator: CAT313 Boom Length: 7200 Mm
Stick: 5800mm Bucket Volume: 0.3 Cum
Max Reach: 12500mm Max Cut Depth: 9000mm
Max Cut Height: 11300mm Folding Height: 2900 Mm
Material: Q345B+Q690D Extra Counter Weight: No Need
High Light:

mini excavator extendable arm

,

material handling cranesnes

,

Multi Functional Cat Material Handling Arm

Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts



Application:

1. The Customer is our domestic customer,he have a project for Swamp clean.

2. So he purchase a new CAT313D excavator without undercarriage,then purchase amphibious pontoon from our cooperator,purchase long material handling boom arm for us.





1. Our company specialized in customizing all kinds of super long fronts for all kinds of excavators.

We have detailed dimension of Cat pillar 313 excavator,so just give us the excavator model is ok.

2. Sheet Material of CAT313 Amphibious Excavator 13m Length Material Handling Arm is Q345B,Pin’s material is 42CrMo4.



3. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.


4. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.



5. For all long material Handling boom arm we produced,will supply follow parts:

Bucket:1 pcs

Linkage:1 kits

Bucket cylinder:1 pcs

Hydraulic pipe:1 kits

Lubricant pipe:1 kits

Counter weight(if need):1 pcs

Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare

Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts 0







Specification:

Specification of our long reach boom

Model LR120 LR200-1 LR200-2 LR300 LR350 LR400 LR450
Total length (mm) 13000 15500 18000 18000 20000 22000 24000
Self weight (kg) 3000 4150 4400 5200 6000 6500 7000

Max cut depth

(mm)

9000 11340 12200 12200 14500 16100 18000
Max reach (mm) 12500 15100 17600 17600 19600 21600 23200

Max cut height

(mm)

11300 12510 13500 13720 14920 16100 17300

Folding height

(mm)

2900 2980 3040 3210 3320 3400 3430

Bucket capacity

(cum)

0.3 0.6 0.4 0.4 0.5 0.6 0.6

excavator tonnage

(ton)

10~15 16~22 20~24 25~33 30~36 35~42 40~50

Above parameter is our standard parameters,if you need special design,we can customize for you.





Specification of this CAT313 13m long reach Marterial Handling boom arm:

Total length 13000 mm
Boom length 7200 mm
Stick length 5800 mm
Bucket 0.3 cum
Max reach 12500 mm
Max cut depth 9000 mm
Max cut height 11300 mm
Folding height 2900mm
Material Q345B
Extra counter weight No need

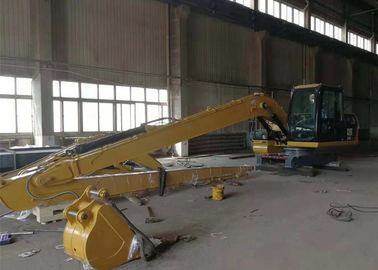

Delivery picture:

Multi Functional Cat Material Handling Arm Amphibious Universal Design Long Fronts 1
