|Excavator:||Kobelco SK380||Bucket Width:||1710 Mm|
|Max Open:||2600 Mm||Bucket Capacity:||3.0 Cum|
|Hose Fittings:||ORFS 13/16"||Cylinder:||2 Pcs|
SK380 Excavator Grab Attachment,
3.0 Cum Excavator Grab Attachment,
Worm Rotating Excavator Bucket Grab

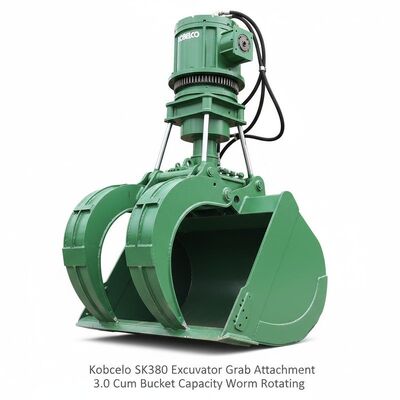

Kobelco SK380 Excavator Grab Attachment 3.0 Cum Bucket Capacity Worm Rotating
Clamshell bucket grabs are very popular and ideal in loading and unloading, dredging and excavation works.
Especially for loading and unloading at barge docks, flip buckets can be very bulky and efficient.
We can design and customize various clamshell bucket grabs according to customer requirements.
- Non-rotating spin available.
- Bucket width and bucket capacity can be customized
- Single cylinder and double cylinder are available.
We can also customize a variety of material handling arms and clamshell buckets for you.
Excavator Clamshell bucket grab is easy for installation:
-if no rotary function,it’s do not need extra pipe line,it can be connect to the pipe line of bucket cylinders.
-if have rotary function,need two kits extra auxiliary pipe line,we can prepare for you.
Specification of the Kobelco SK380 Rotating Clamshell bucket grab:
Excavator model Kobelco SK380
Bucket width 1710mm
Bucket opening 2600 mm
Barrel volume 3.0 cum
Rotation 360 degrees Worm rotation
Closed height 2700 mm
Cylinder number 2pcs
Hose connector ORFS 13/16"
Customer use this bucket for coal loading&unloading.Coal Idensity is lower.
So the bucket is light design and higher bucket volume.
|Bucket capacity (cum)||0.35||0.6||1.2||1.5||2.0|
|Max open (mm)||900||1420||1800||2200||2400|
|Bucket width (mm)||800||1000||1200||1350||1600|
|Self weight (kg)||320||650||1100||1500||2200|
|Closed height (mm)||1400||1700||2000||2300||2600|
|Excavator tonnage (ton)||5~8||10~15||16~25||26~35||36~45|
Above parameter is our non-rotary standard design,rotary function is selectable.
If have special design or requirements,we also can prepare for you.
1. Side plate and tooth plate of the excavator clamshell bucket is NM400 steel,very wearable.
2. Rotary or Non-rotary is selectable
3. Bucket size,height,weight,bucket open,shape can design according to your projects' requirements.
4. We can design and customize material Handling arm together with the Clamshell bucket grab for you.
5. We can supply hydraulic steel pipes and hoses for assembling.For steel pipes,also supply welding base and pipe clamp for fixing the steel pipe.
- Also supply stop valves for the pipes,so it's easy for replacing other attachments.
- If need foot switch valve,we also can supply
6.Welding is protective-gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas
1.This Kobelco SK380 3 cum rotating clamshell bucket grab was export to India,together with a 16m length Sk380 Material Handling arm.
2.Customer use the Material handling arm together with clamshell bucket for Coal loading&unloading.
